Part name |
order number |
project |
Parameter value/specification |
|
carload |
1 |
Vehicle model |
YX-20E |
|
|
2 |
Cleaning width |
2050mm |
|
|
3 |
Master brush width |
700mm |
|
|
4 |
work efficiency |
9000-16000m²/h |
|
|
5 |
operate time |
2-6h |
|
|
6 |
Garbage bin capacity |
180L |
|
|
7 |
Side brush diameter |
Front 600mm rear 500mm |
|
|
8 |
speed of travel |
0-14km/h |
|
|
9 |
outline dimension |
2400*2050*2060mm |
|
|
10 |
water box |
160L |
|
|
11 |
Vacuum filtration area |
6m² |
|
|
12 |
Type of tyre |
400-8 solid tire |
|
|
13 |
control method |
Intelligent control system (periodic dust vibration function) |
|
caution light |
1 |
headlight |
Four-way LED headlights |
|
|
2 |
tail light |
Turn to + brake + driving integrated taillights |
|
|
3 |
alarm lamp |
Top job warning light |
|
storage battery |
1 |
Battery type |
Lead acid maintenance free (optional lithium battery) |
|
|
2 |
battery capacity |
Standard 48V100AN (optional 48V150AH) lead-acid battery |
|
any power-generating or power-driven machine |
1 |
Walking motor |
800W smart gearbox |
|
|
2 |
Brushed motors |
1000W |
|
|
3 |
Brushed motor |
4*100W |
|
|
4 |
Motor voltage |
48V |
|
rearview mirror |
1 |
model |
For sweeper trucks only |
Road Sweeper Car

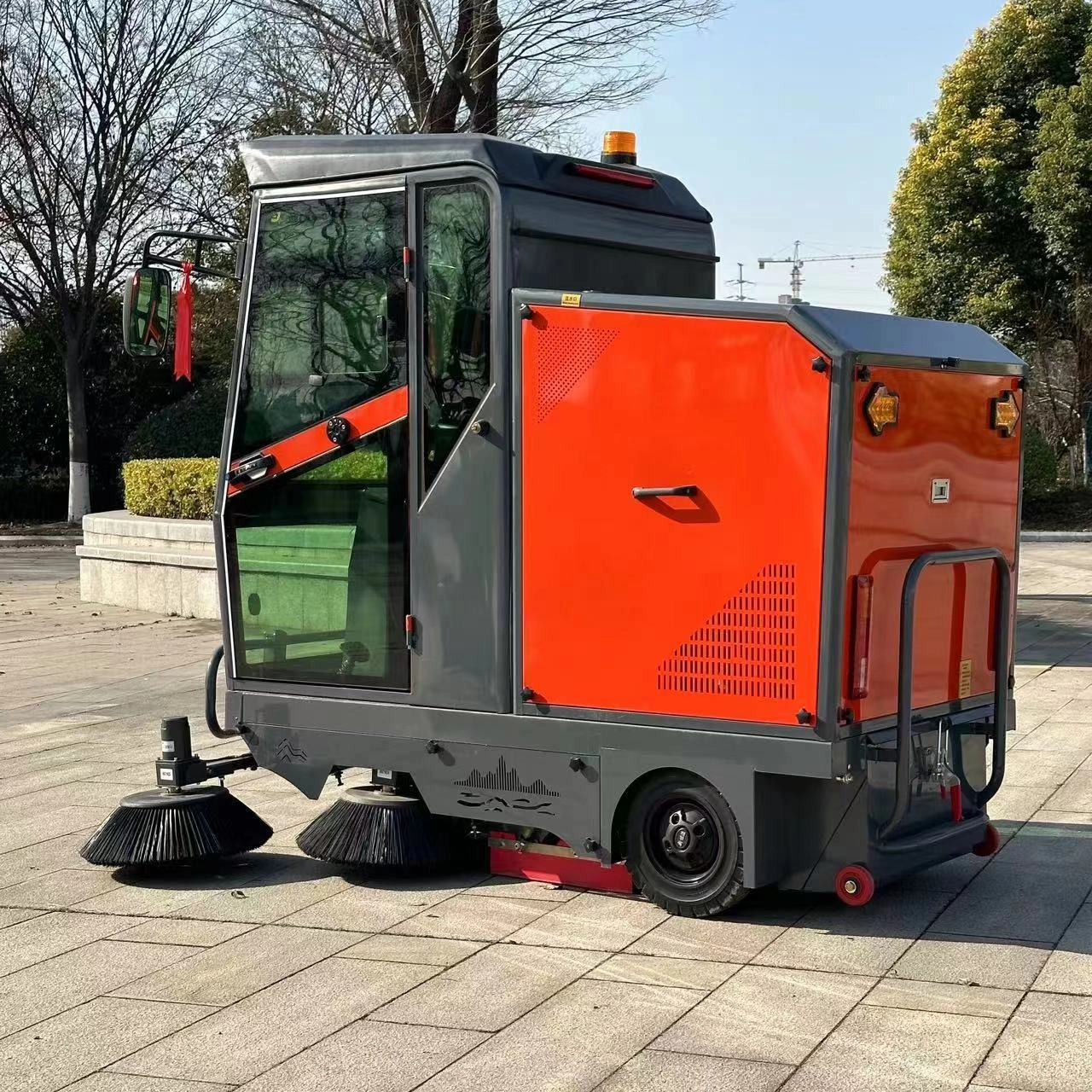

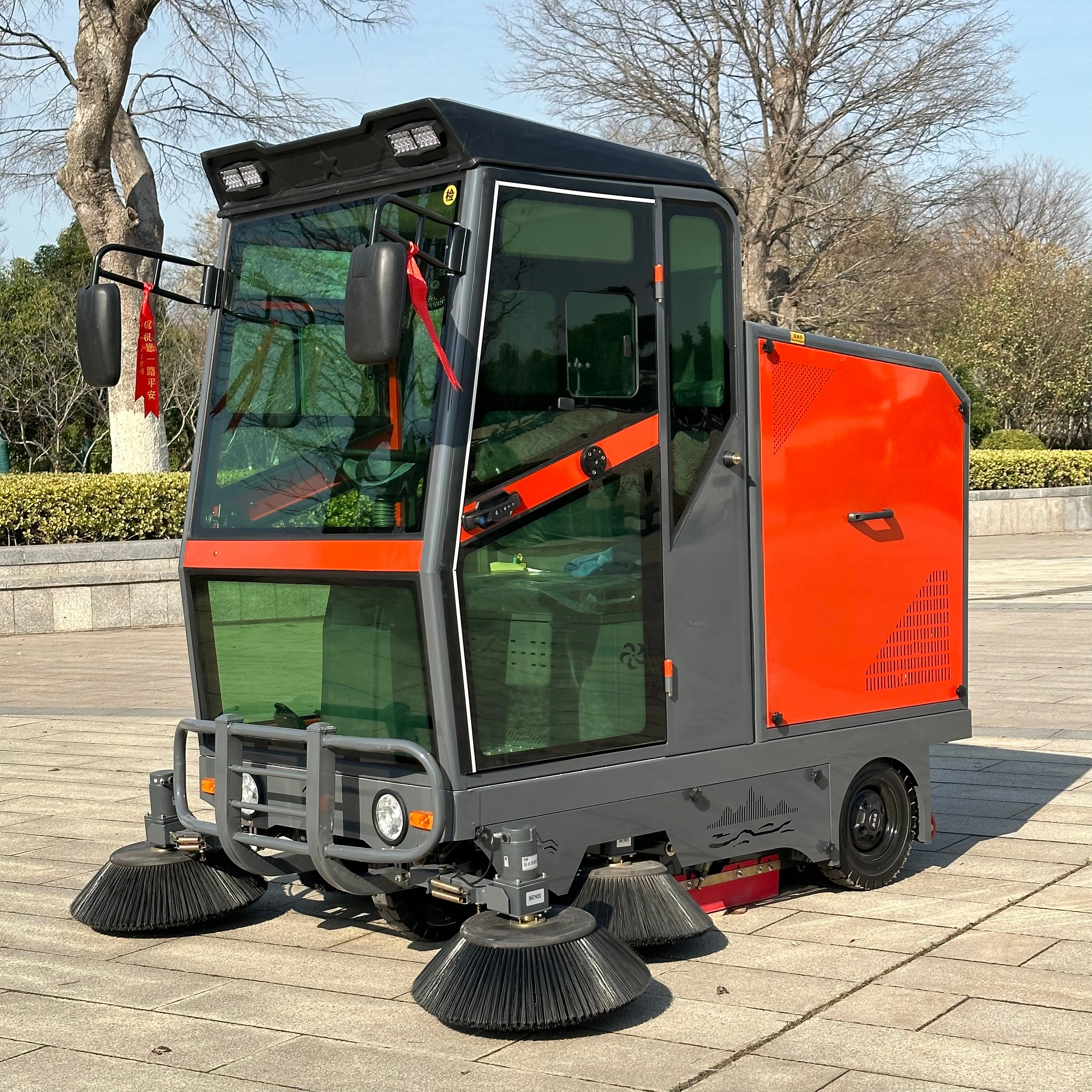

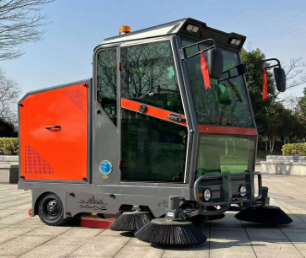

Five-brush ST-20E Outdoor Large Fallen Leaf Garbage Sweeper
Product parameters:
-
