Part name |
order nu- mber |
project |
Parameter value/specification |
carload |
1 |
Vehicle model |

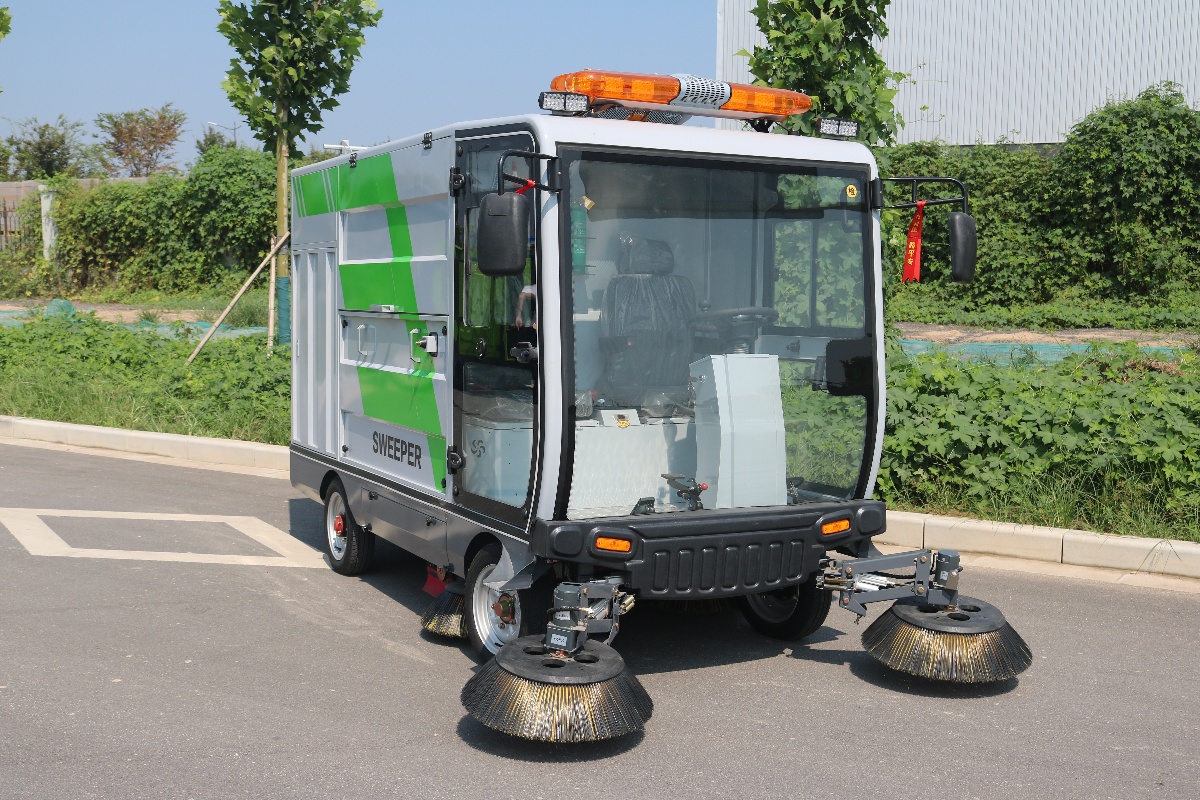

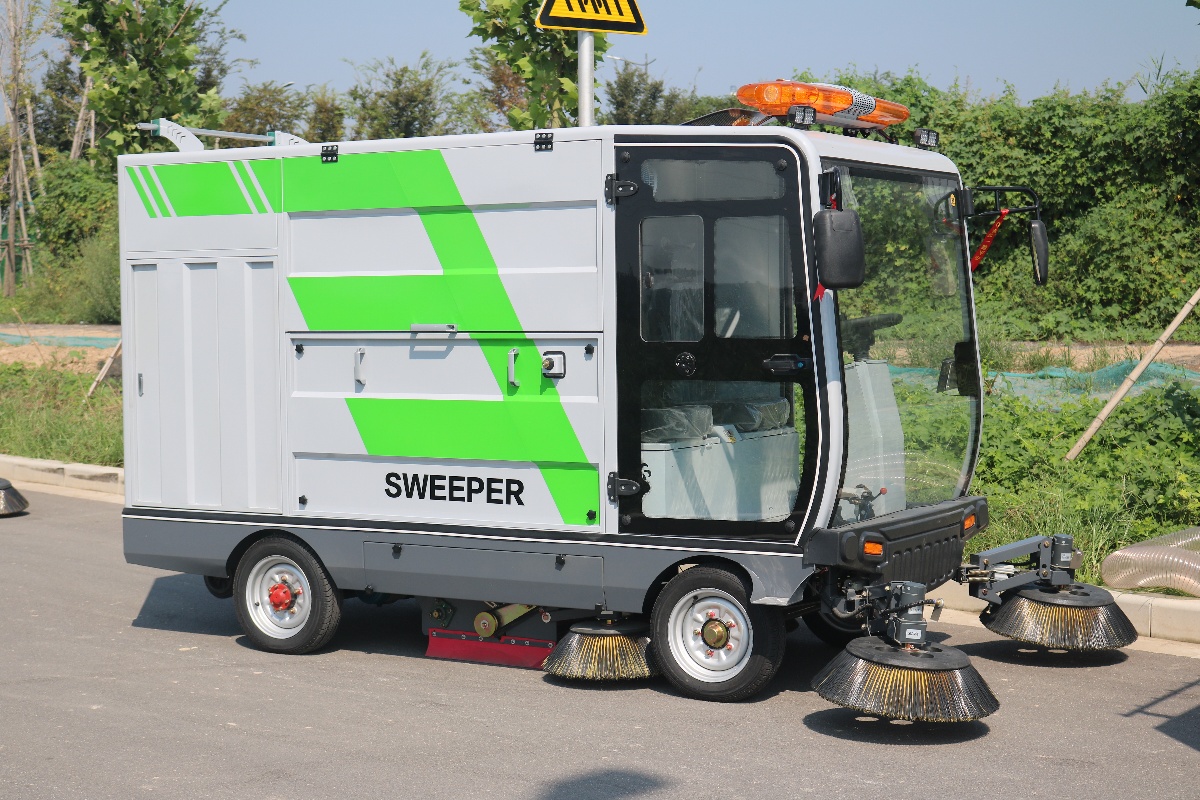

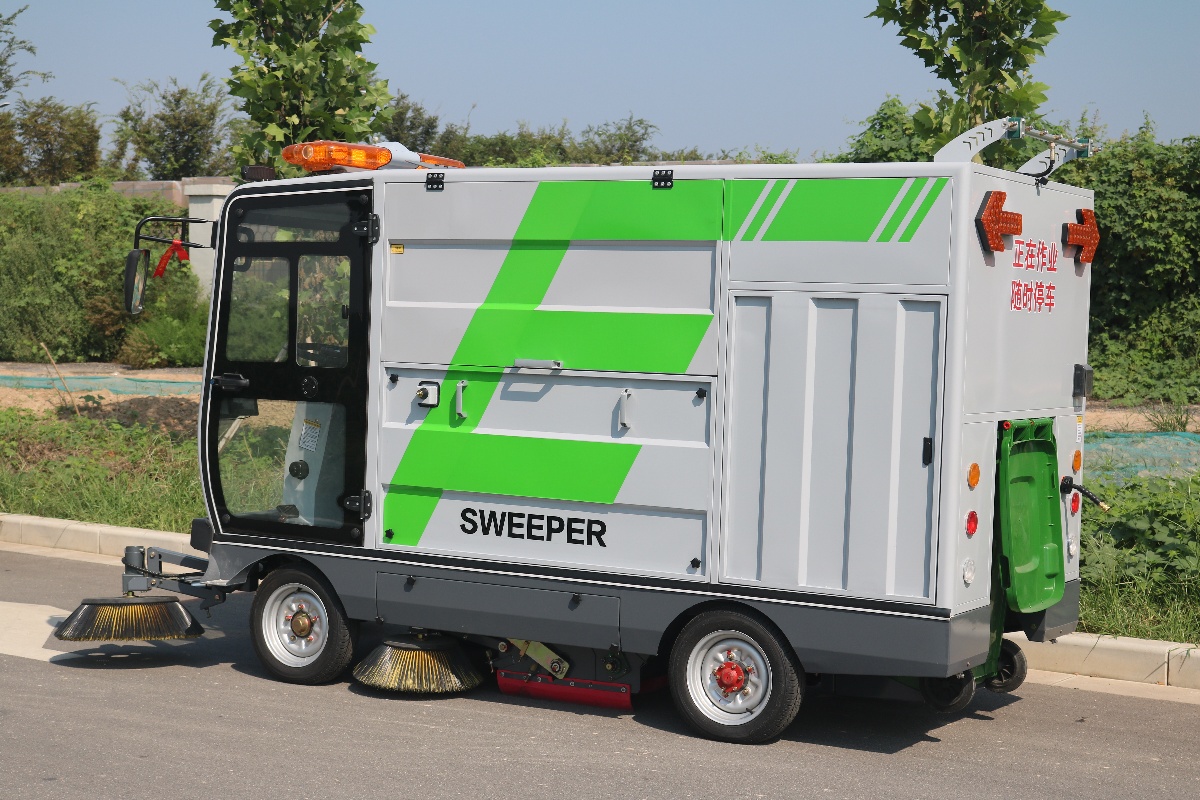

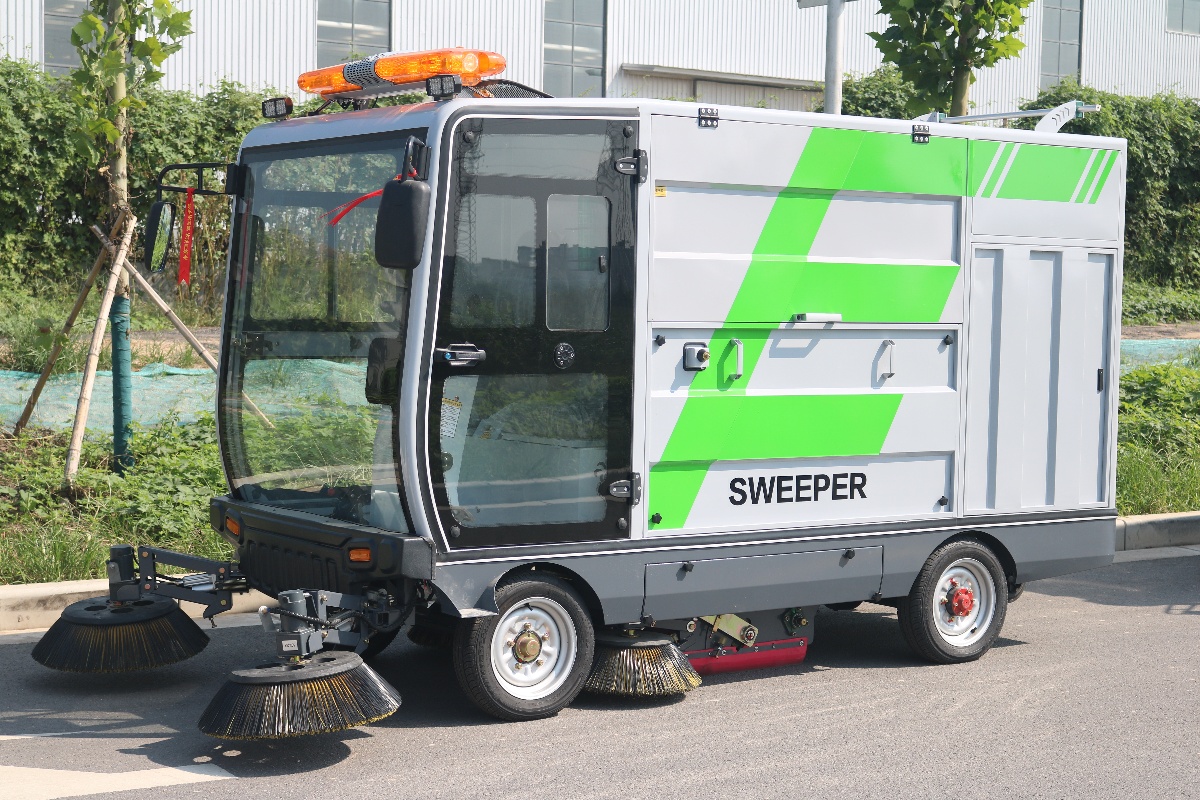

Four wheel SUTO-240L bucket sweeper |
|
|||
2 |
Cleaning width |
2450mm |
|
|
3 |
Master brush wi- dth |
800mm |
|
4 |
work efficiency |
15000-25000m²/h |
|
5 |
operate time |
3-6h |
|
6 |
Garbage bin capacity |
Standard 240L |
|
7 |
Side brush di- ameter |
Front 700mm, rear 600mm |
|
8 |
speed of travel |
0-18km/h |
|
|||
9 |
outline dimension |
3660*2400*2200mm |
|
|
10 |
water box |
320L |
|
11 |
Vacuum filtration area |
20m² |
|
12 |
Type of tyre |
130/70R12 |
|
13 |
control method |
Intelligent control system (periodic dust vibration function) |
caution light |
1 |
headlight |
Four-way LED headlights |
|
2 |
tail light |
Turn to + brake + driving integrated taillights |
|
|||
3 |
alarm lamp |
Top job warning light |
|
|
4 |
back-up lamp |
Reverse cam- era |
storage battery |
1 |
Battery type |
Lead acid maintenance free (optional lithium battery) |
|
2 |
battery capacity |
Standard 48V200AH lead-acid battery |
any power-generating or power-driven mac- hine |
1 |
Walking motor |
3000W smart gearbox |
|
2 |
Brushed motors |
1200W |
|
3 |
Brushed motor |
4*100W |
|
4 |
Motor voltage |
48V |
rear view mirror |
1 |
model |
For sweeper trucks only |
