Part name |
order number |
project |
Parameter value/specif- ication |
|
carload |
1 |
Vehicle model |
SUTO-1250 |
|
|
2 |
Cleaning width |
1250mm |
|
|
3 |
Master brush wi- dth |
490mm |
|
|
4 |
work efficiency |
8000m²/h |
|
|
5 |
operate time |
2-4h |
|
|
6 |
Garbage bin capacity |
80L |
|
|
7 |
Side brush di- ameter |
500mm |
|
|
8 |
speed of travel |
0-14km/h |
|
|
9 |
outline dimens- ion |
1400*1250*1350mm |
|
|
10 |
water box |
60L |
|
|
11 |
Vacuum filtration area |
5m² |
|
|
12 |
Type of tyre |
Front 400-6, rear 300-8 solid tires |
|
|
13 |
control method |
Intelligent control system (periodic dust vibration function) |
|
caution light |
1 |
headlight |
Four-way LED headlights |
|
|
2 |
tail light |
Turn to + brake + driving integrated taillights |
|
|
3 |
alarm lamp |
Top job warning light |
|
storage battery |
1 |
Battery type |
Lead acid maintenance free (optional lithium battery) |
|
2 |
battery capacity |
Standard 48V45AH lead-acid battery |
|
|
any power- generating or power-driven machine |
1 |
Walking motor |
650W smart gearbox |
|
2 |
Brushed mot- ors |
800W |
|
|
|
3 |
Brushed motor |
4*100W |
|
|
4 |
Motor voltage |
48V |
|
rear view mirror |
1 |
model |
For sweeper trucks only |
|
Note: Standard single fan Machine performance: suction, sweep and spray combined to effectively suppress dust and thoroughly clean up ground garbage and dust Application: It is used for cleaning factory workshops, parks, streets, roads, docks, residential areas, warehouses, stadiums and other areas. The cleaning efficiency is 10 times that of traditional manual cleaning, and one sweeper can replace 8-12 cleaning workers. |
|||
Road Sweeper Car

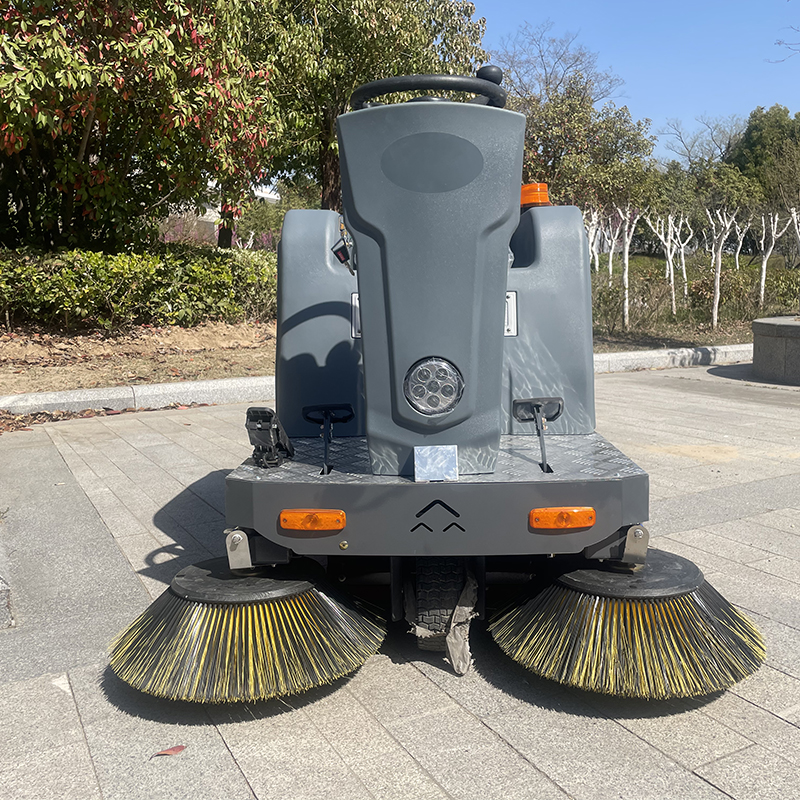

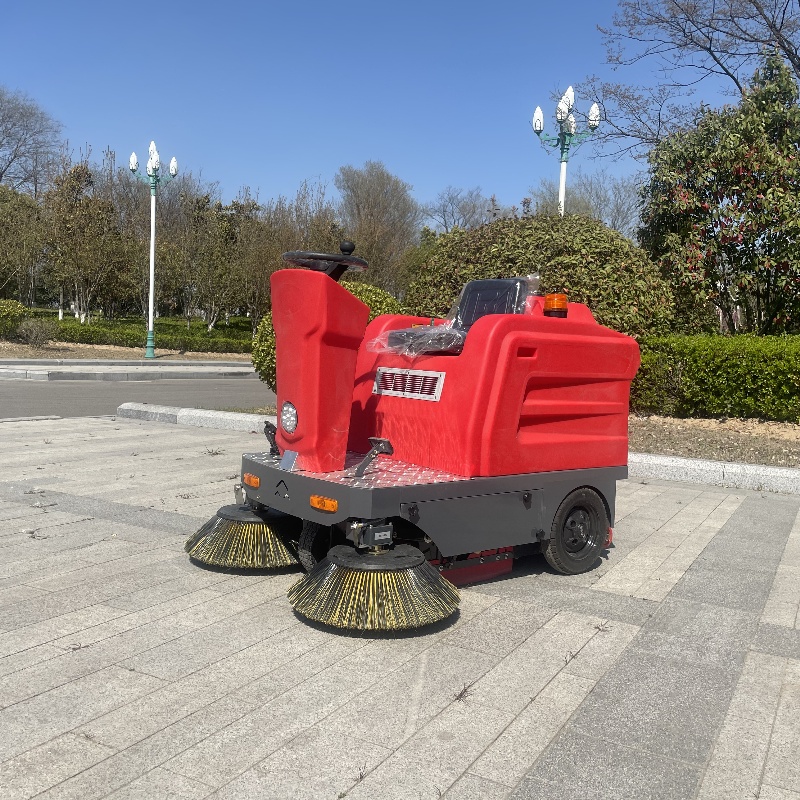

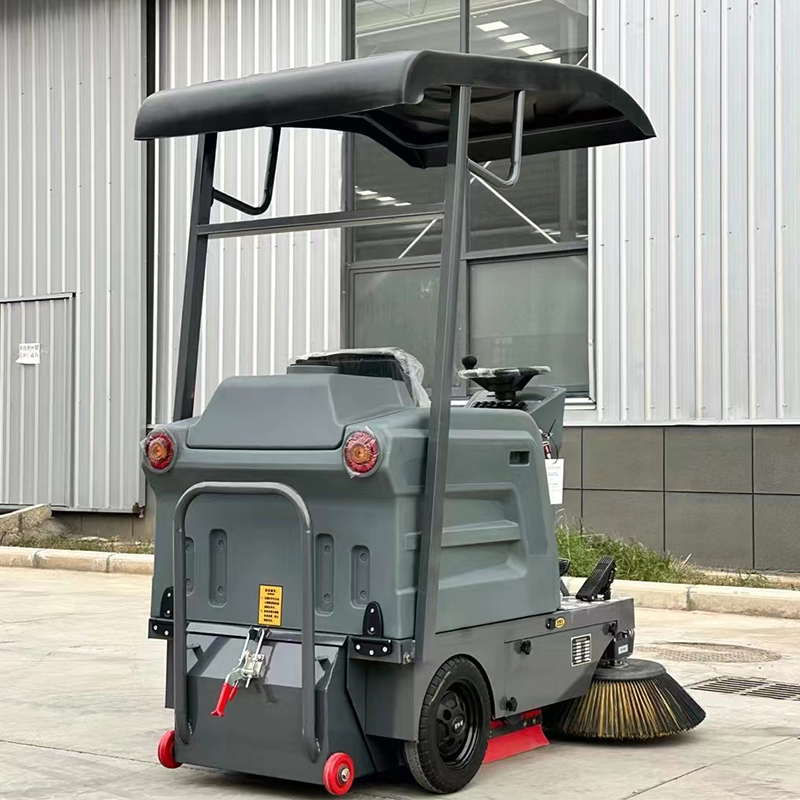

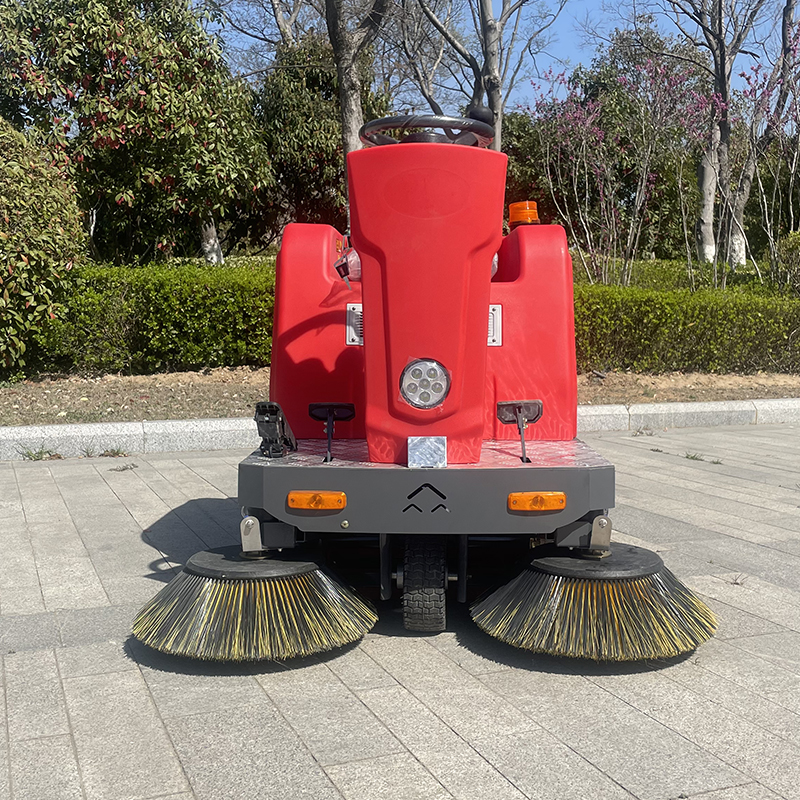

SUTO-1250 Three-brush Outdoor Sweeper
Product parameters:
-
OEM/ODM
-
R&D Team
-
After-Sales Service Team
-
Global Delivery
Description
Parameters
The combination of suction, sweeping, and spraying effectively suppresses dust and thoroughly removes ground debris and dust. Suitable for cleaning factory workshops, parks, streets, driveways, docks, property developments, warehouses, stadiums, schools, airports, and other areas. Its cleaning efficiency is 10 times that of traditional manual cleaning, and one sweeper can replace 8-12 cleaners.
|
Part name |
order number |
project |
Parameter value/specif- ication |
|
carload |
1 |
Vehicle model |
SUTO-1250 |
|
|
2 |
Cleaning width |
1250mm |
|
|
3 |
Master brush wi- dth |
490mm |
|
|
4 |
work efficiency |
8000m²/h |
|
|
5 |
operate time |
2-4h |
|
|
6 |
Garbage bin capacity |
80L |
|
|
7 |
Side brush di- ameter |
500mm |
|
|
8 |
speed of travel |
0-14km/h |
|
|
9 |
outline dimens- ion |
1400*1250*1350mm |
|
|
10 |
water box |
60L |
|
|
11 |
Vacuum filtration area |
5m² |
|
|
12 |
Type of tyre |
Front 400-6, rear 300-8 solid tires |
|
|
13 |
control method |
Intelligent control system (periodic dust vibration function) |
|
caution light |
1 |
headlight |
Four-way LED headlights |
|
|
2 |
tail light |
Turn to + brake + driving integrated taillights |
|
|
3 |
alarm lamp |
Top job warning light |
|
storage battery |
1 |
Battery type |
Lead acid maintenance free (optional lithium battery) |
|
2 |
battery capacity |
Standard 48V45AH lead-acid battery |
|
|
any power- generating or power-driven machine |
1 |
Walking motor |
650W smart gearbox |
|
2 |
Brushed mot- ors |
800W |
|
|
|
3 |
Brushed motor |
4*100W |
|
|
4 |
Motor voltage |
48V |
|
rear view mirror |
1 |
model |
For sweeper trucks only |
|
Note: Standard single fan Machine performance: suction, sweep and spray combined to effectively suppress dust and thoroughly clean up ground garbage and dust Application: It is used for cleaning factory workshops, parks, streets, roads, docks, residential areas, warehouses, stadiums and other areas. The cleaning efficiency is 10 times that of traditional manual cleaning, and one sweeper can replace 8-12 cleaning workers. |
|||
