Part name |
order number |
project |
Parameter value/specification |
|
carload |
1 |
Vehicle model |

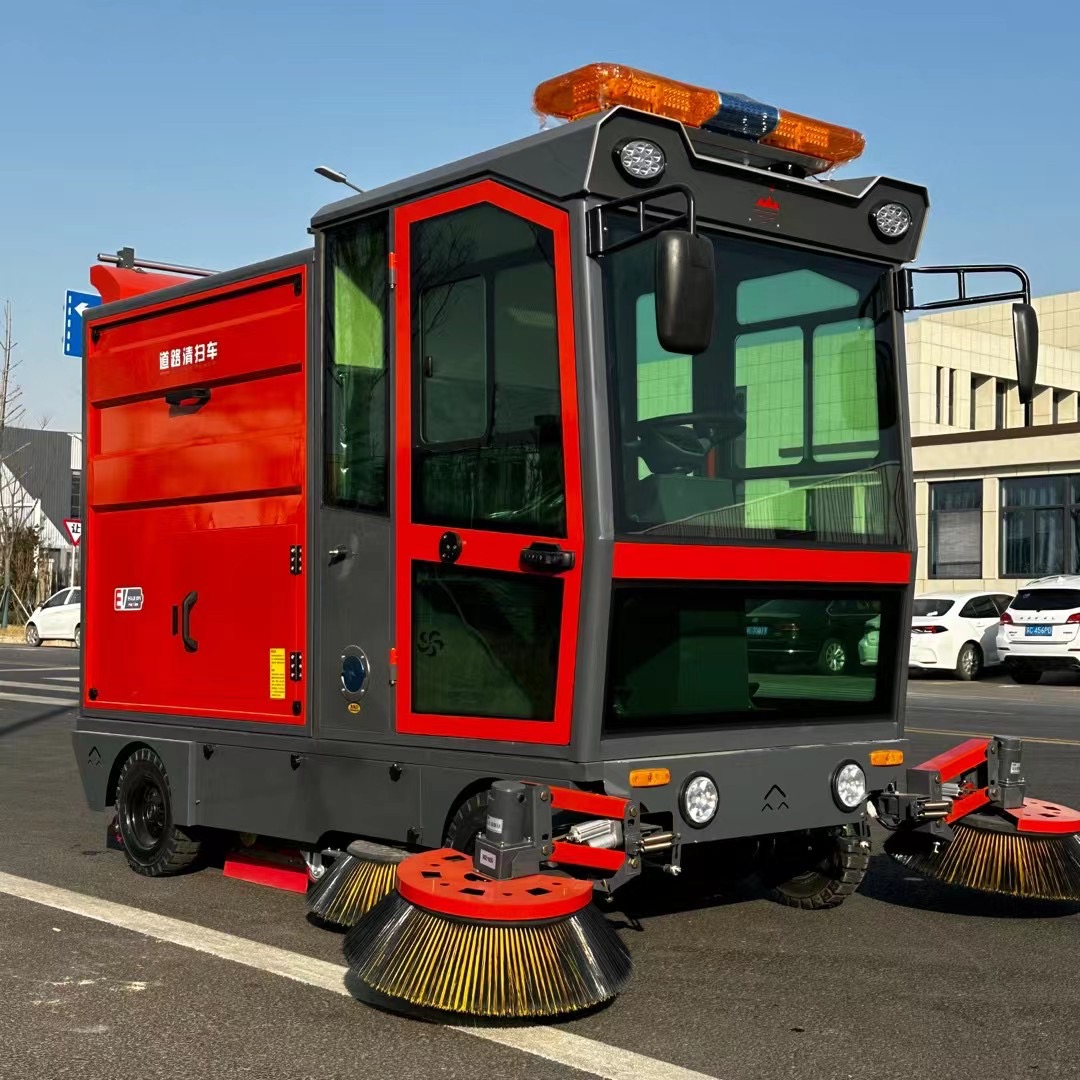

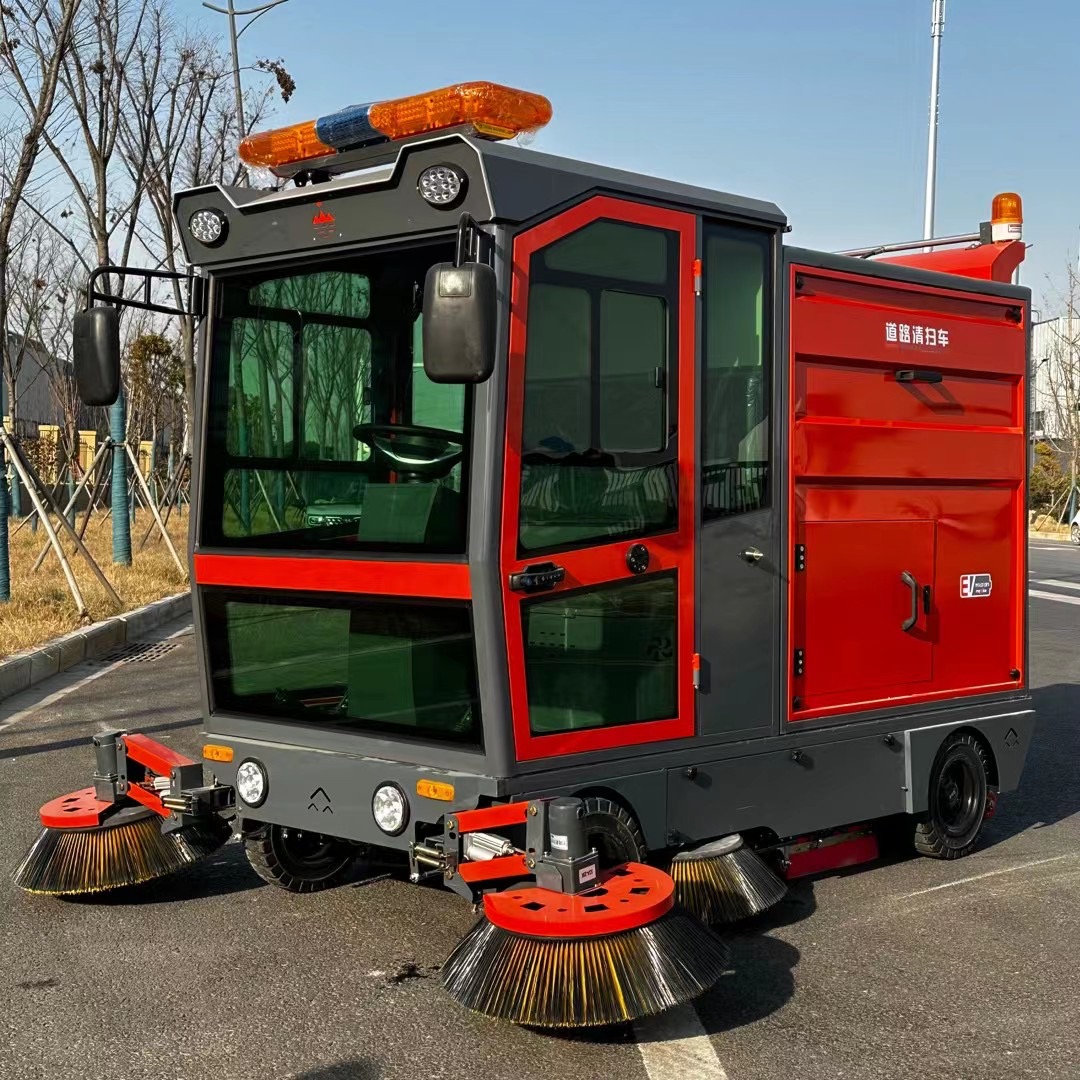

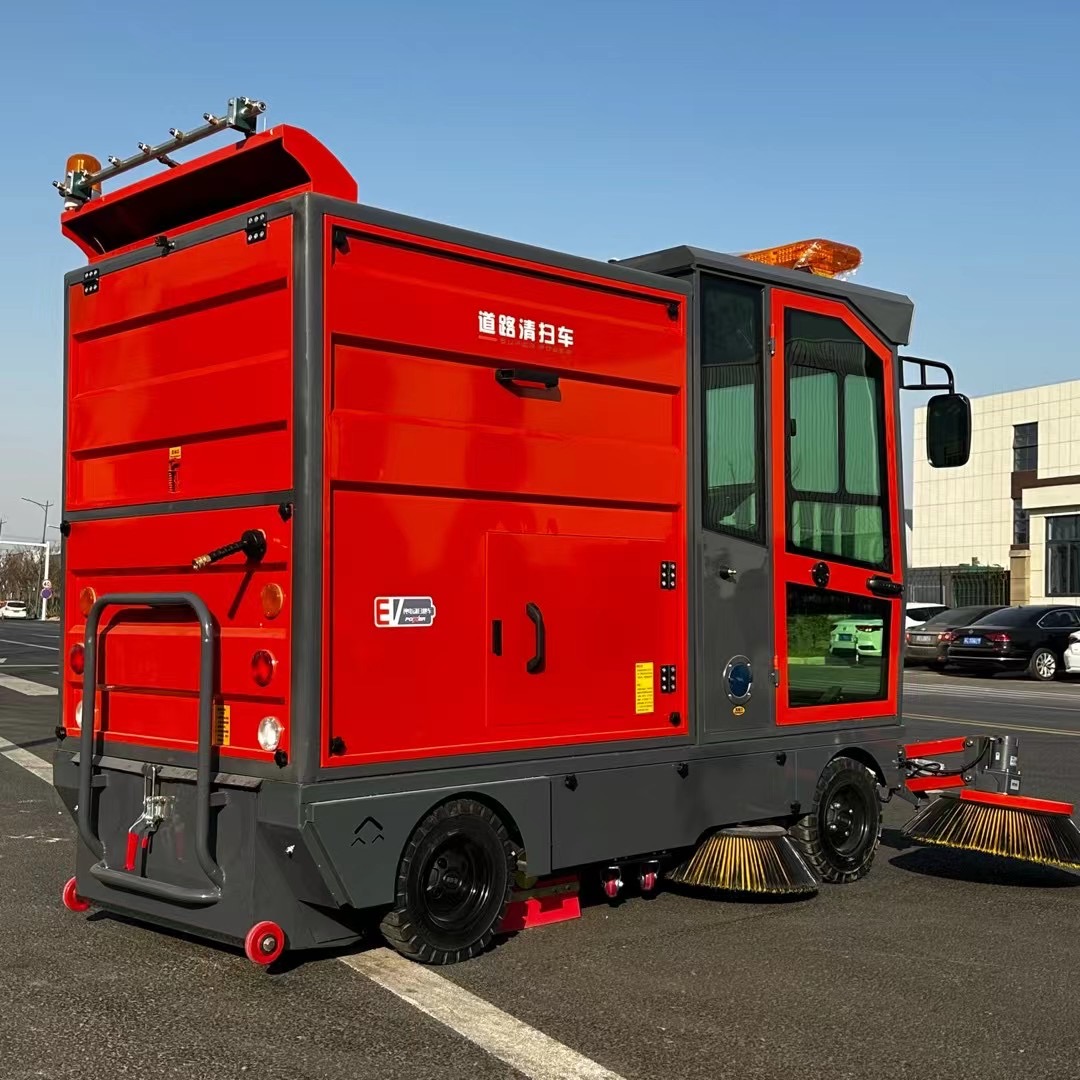

YX-G25 Leaf Collection and garbage cleaning integrated machine |
|
2 |
Cleaning width |
2450mm |
|
|
3 |
Master brush width |
800mm |
|
|
4 |
work efficiency |
20000-35000m²/h |
|
|
5 |
operate time |
3-8h |
|
|
6 |

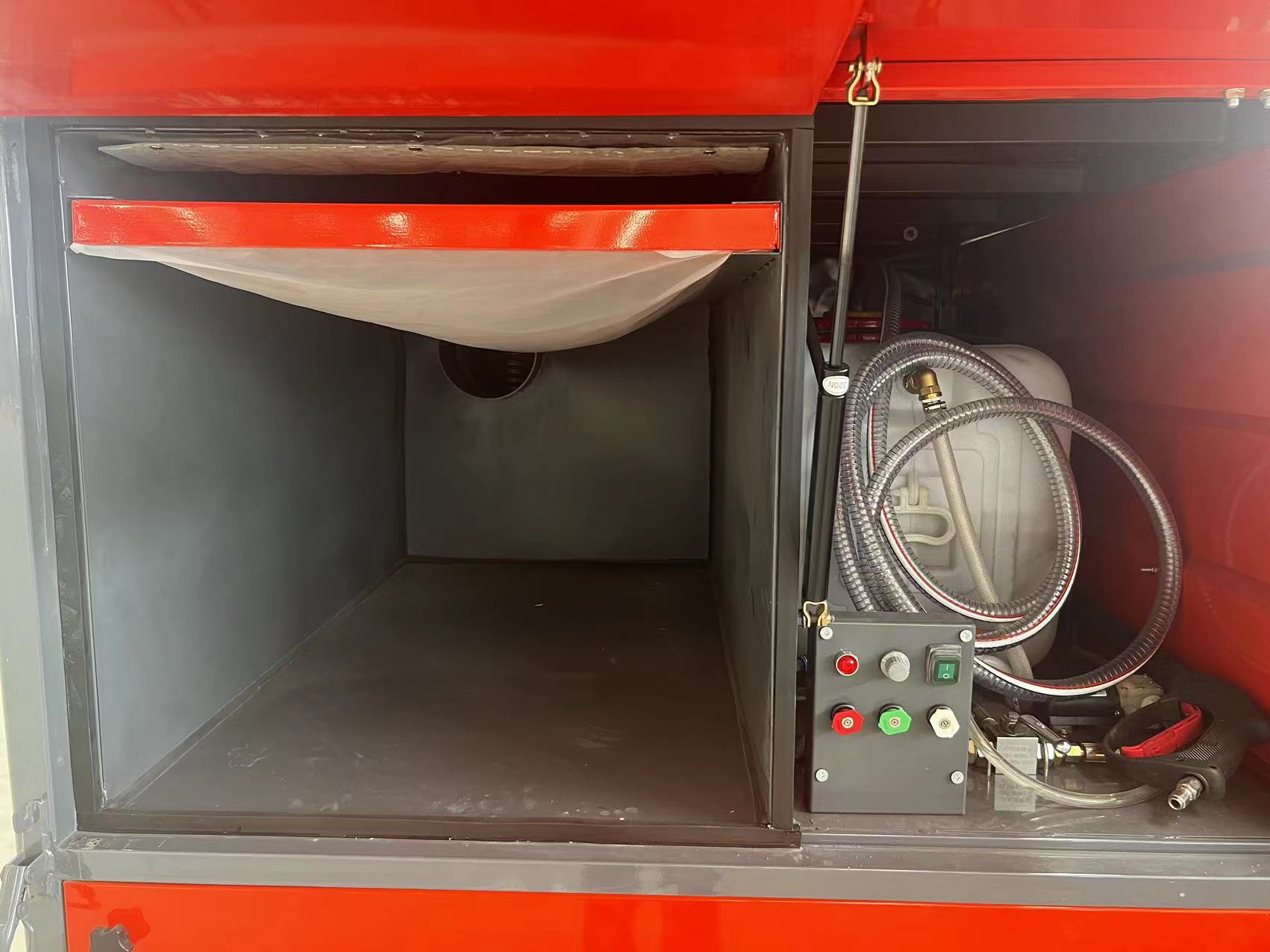

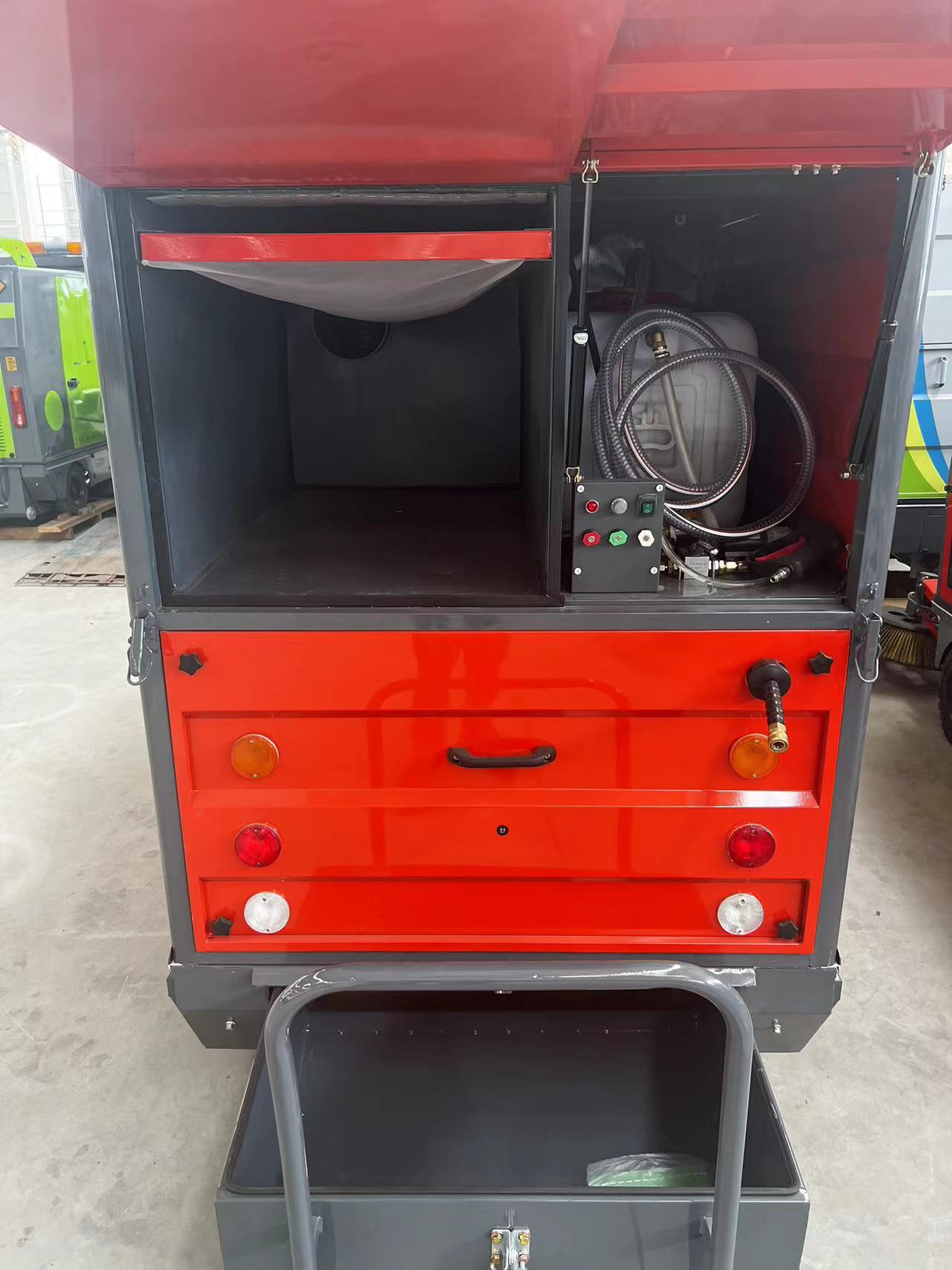

Garbage bin capacity |
220L |
|
|
7 |
Side brush diameter |
Front 700mm rear 600mm |
|
|
8 |
speed of travel |
0-14km/h |
|
|
9 |
outline dimension |
3300*2450*2200mm |
|
|
10 |
water box |
150L |
|
|
11 |
Leaf collection box size |
300L |
|
|
12 |
Vacuum filtration area |
10m² |
|
|
13 |
Type of tyre |
Front 400-10, rear 400-10 solid tires |
|
|
14 |

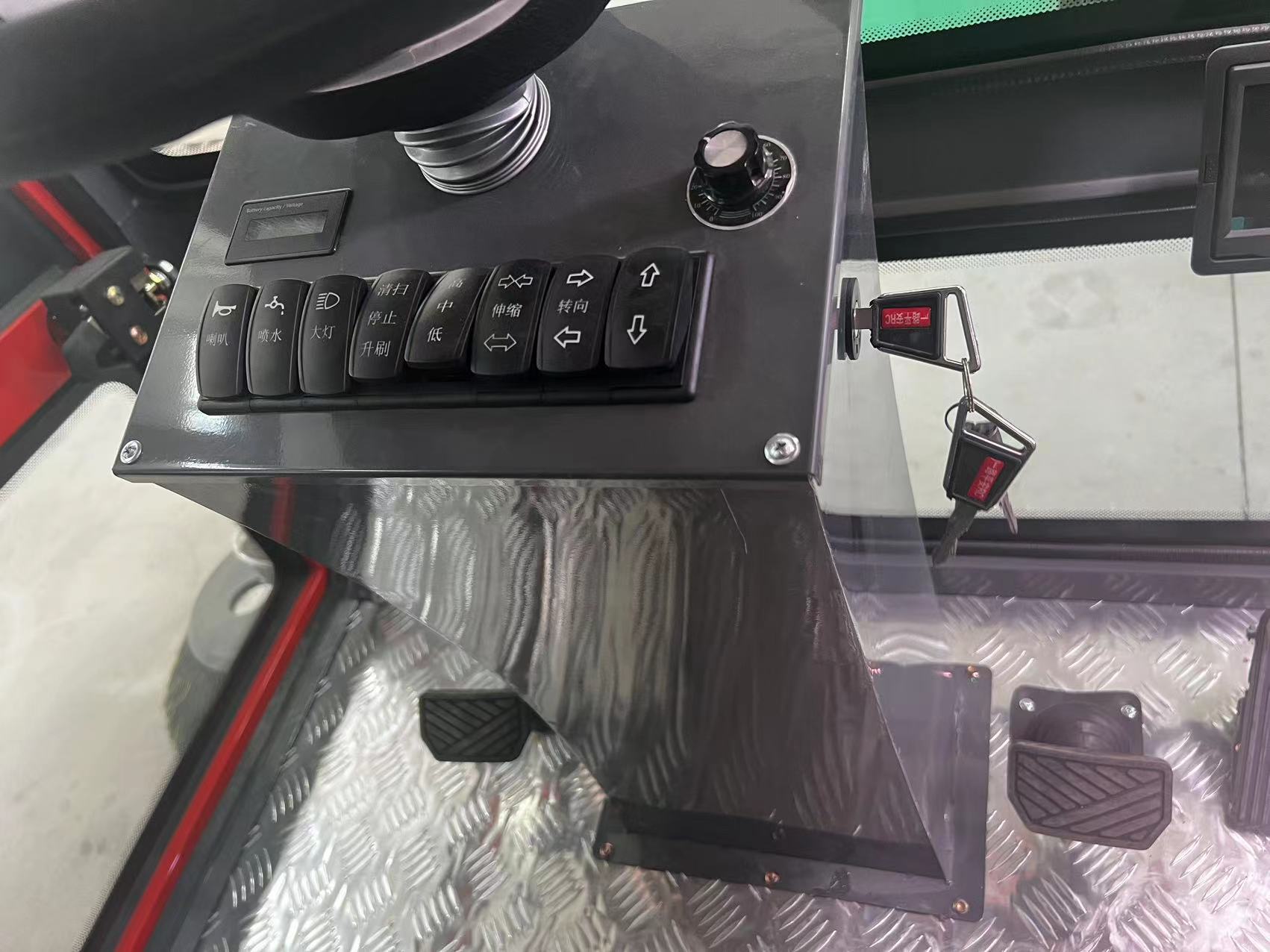

control method |
Intelligent control system (electric dust vibration function) |
|
|
caution light |
1 |
headlight |
Four-direction LED headlights |
|
2 |

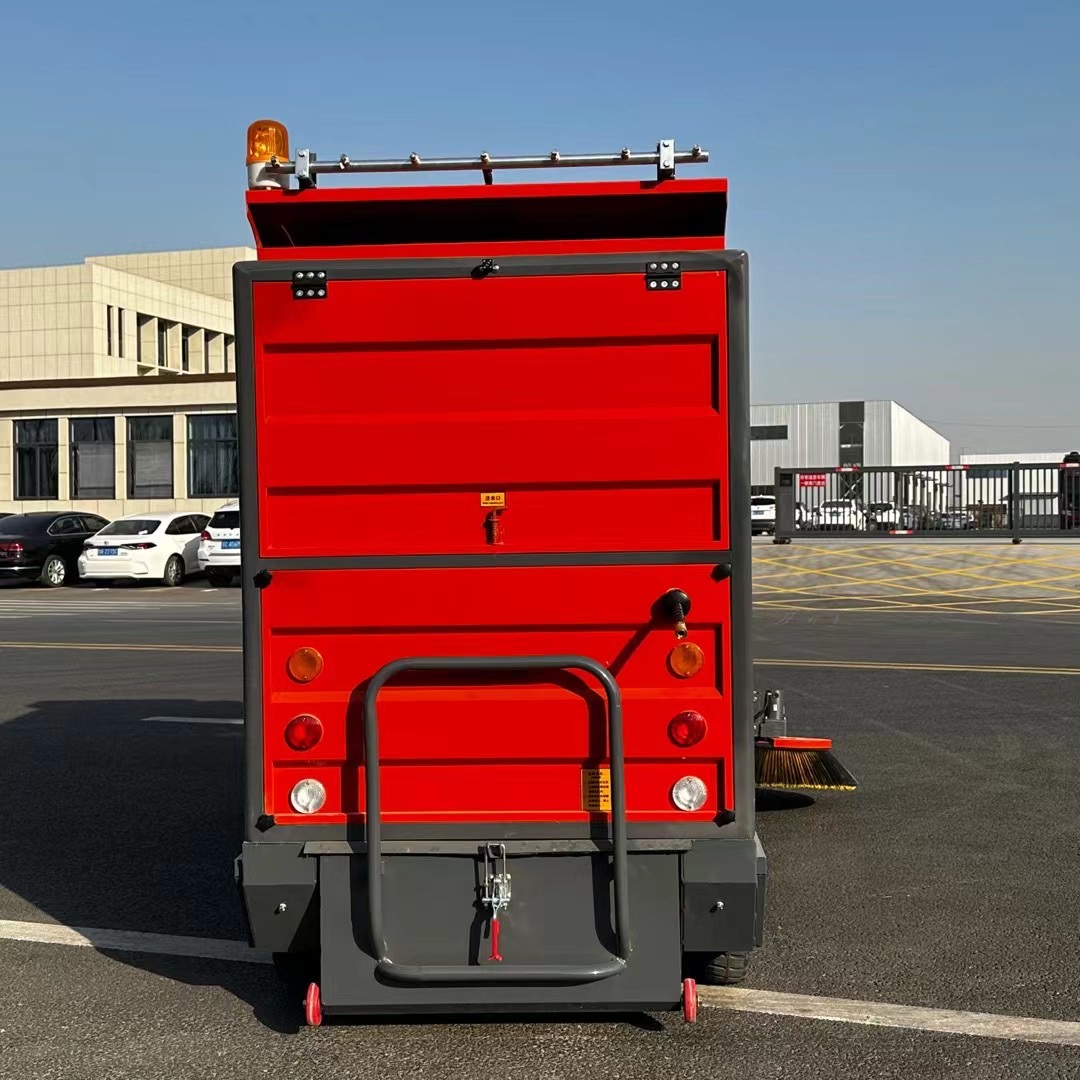

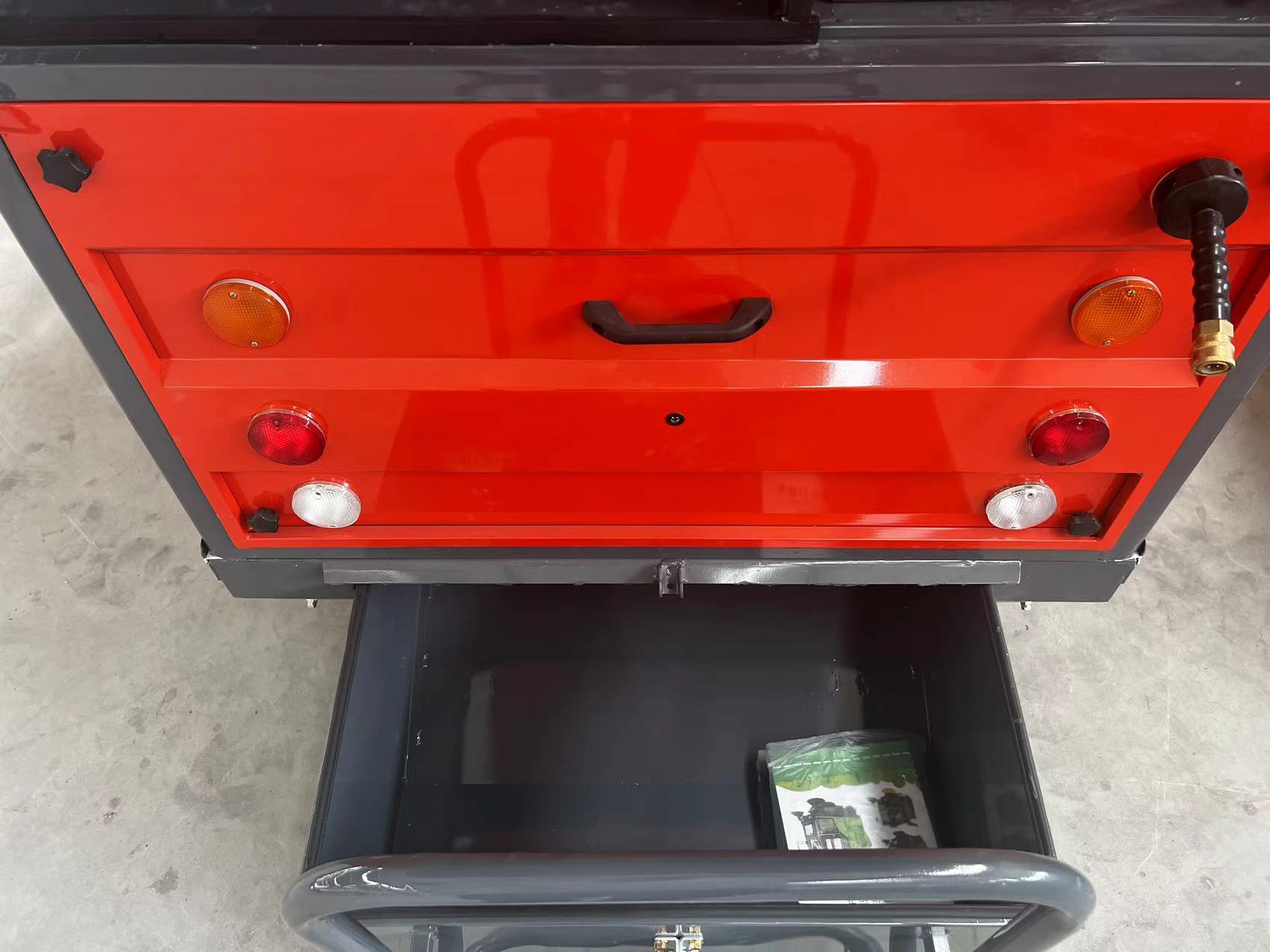

tail light |
Turn to + brake + driving integrated taillights |
|
|
3 |
alarm lamp |
Top job warning light |
|
|
4 |
back-up lamp |

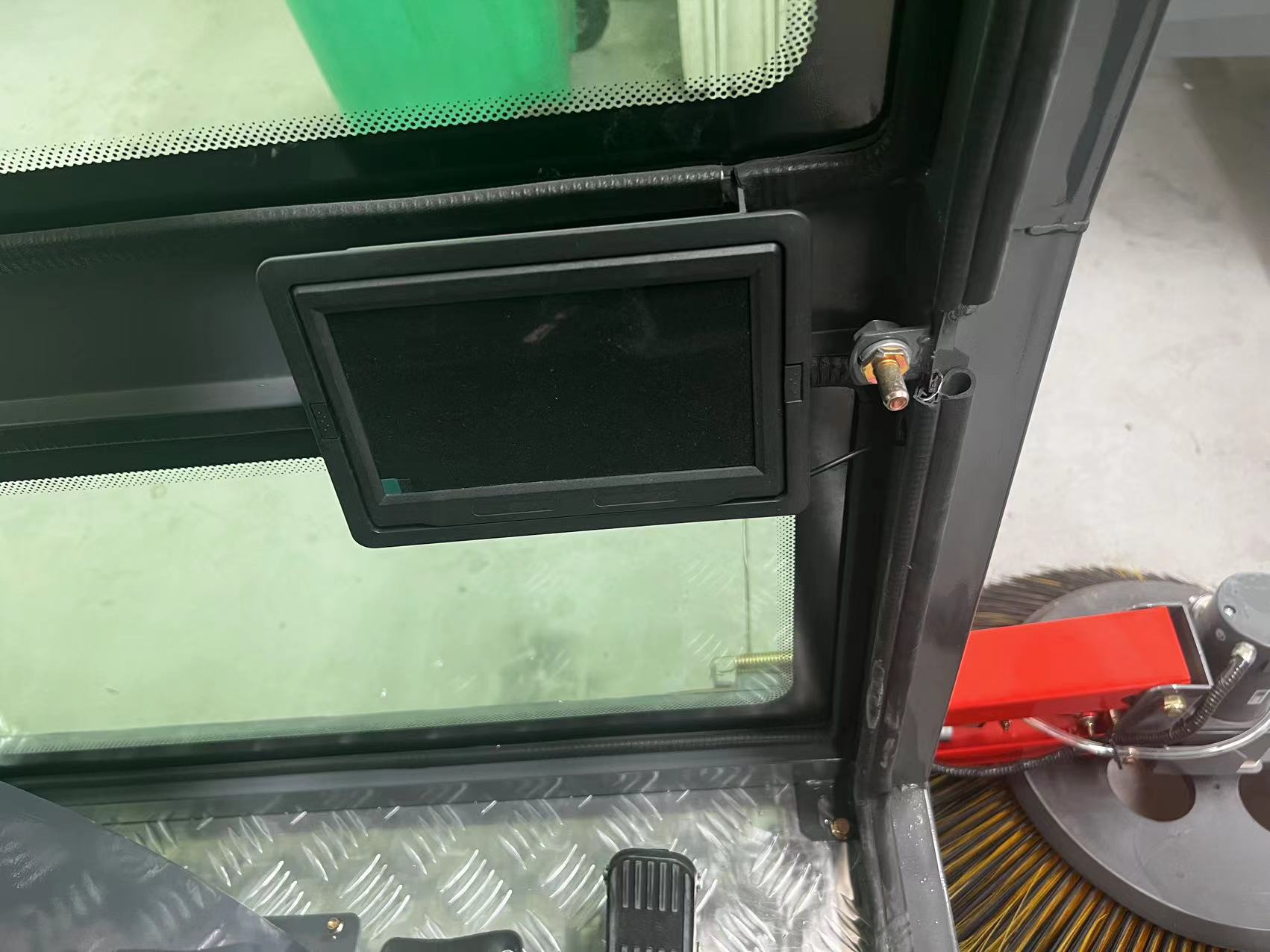

Reverse camera |
|
|
storage battery |
1 |
Battery type |
Lead acid maintenance free |
|
2 |
battery capacity |
Standard 48V200AH lead-acid battery |
|
|
any power-generating or power-driven machine |
1 |
Walking motor |
2200W smart gearbox |
|
2 |
Brushed motors |
1000W |
|
|
3 |
Brushed motor |
4*100W |
|
|
4 |
Motor voltage |
48V |
|
|
5 |

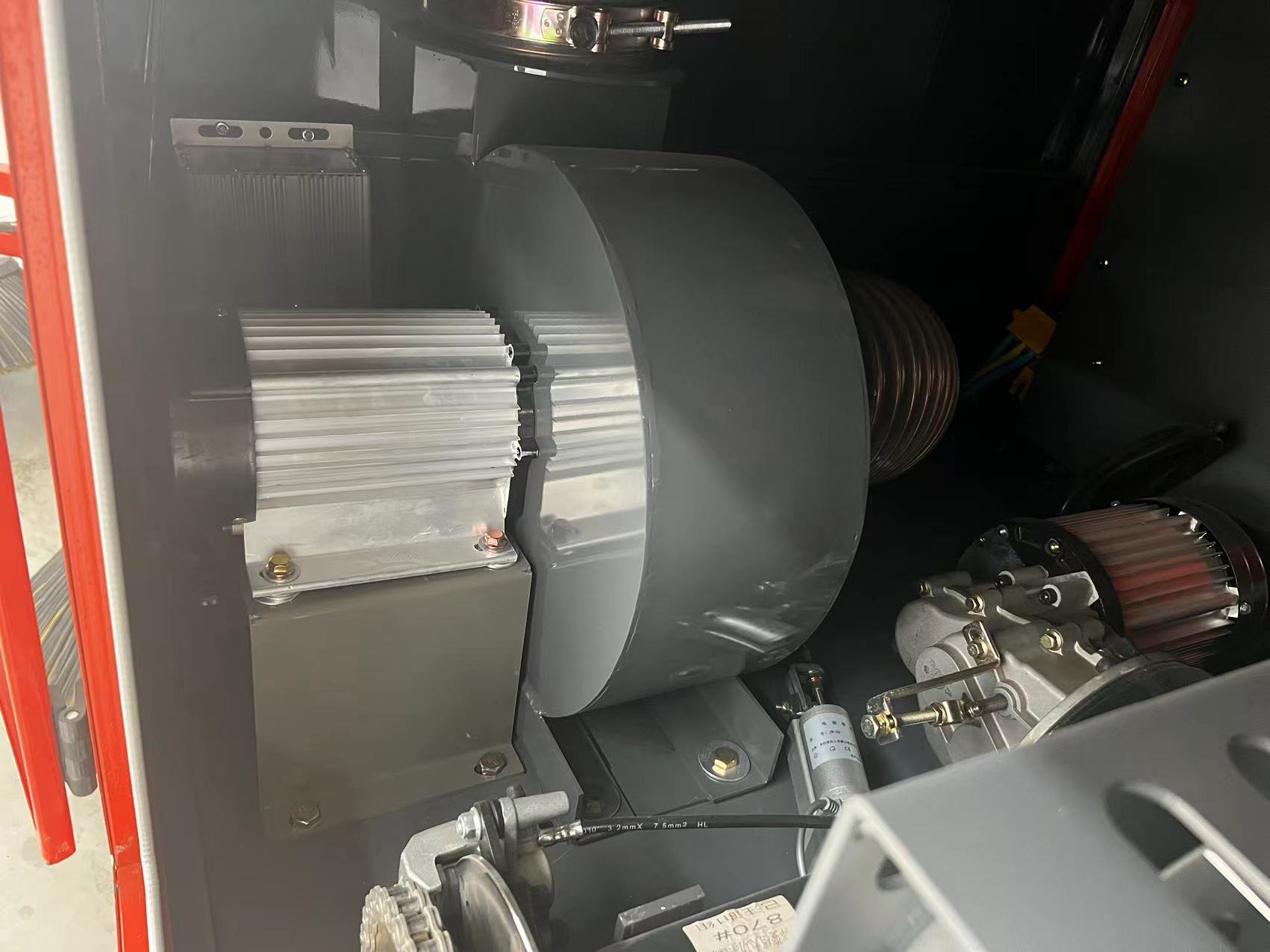

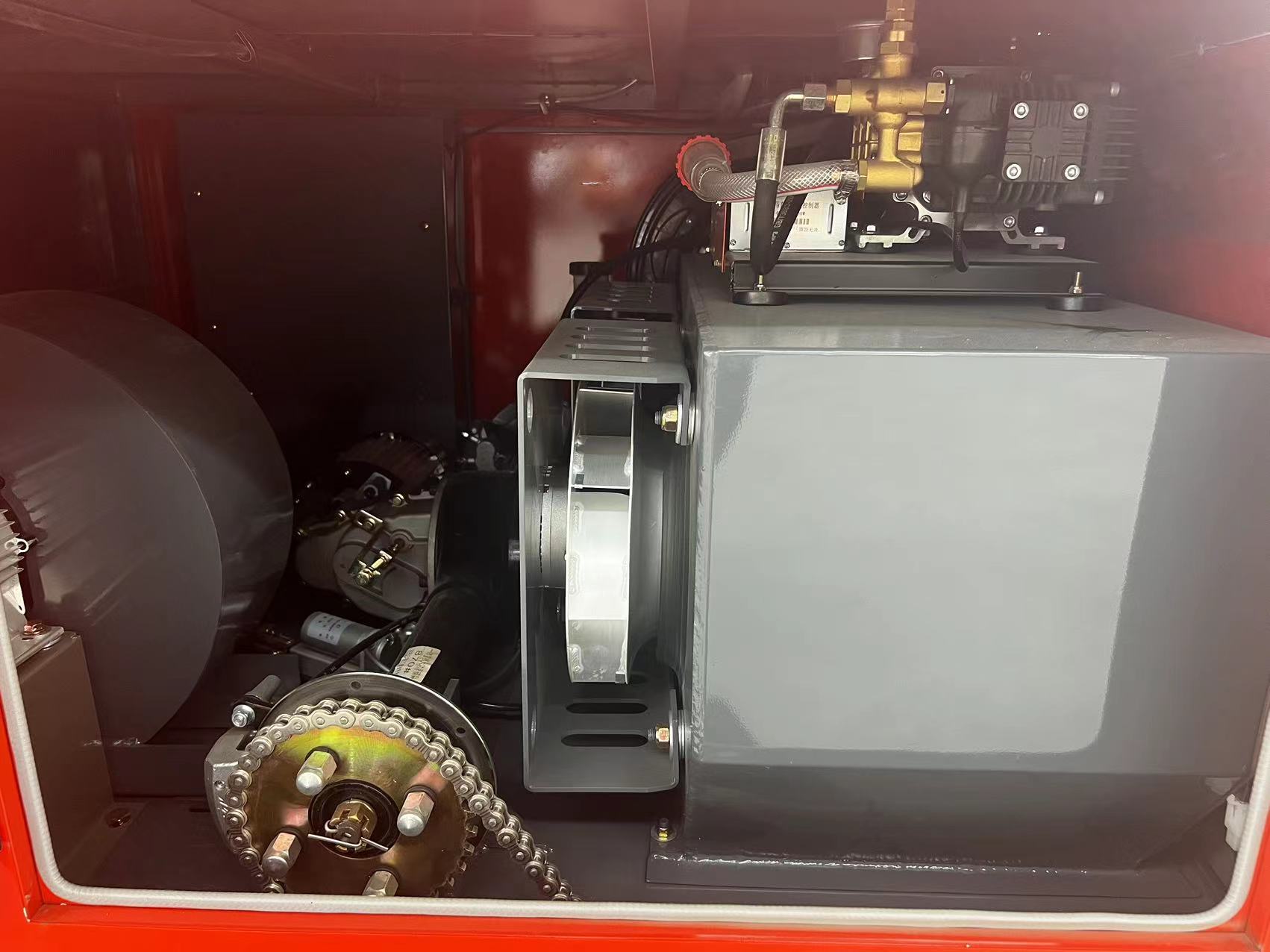

Suction machine power |
1500W |
|
|
rearview mirror |
1 |
model |
For sweeper trucks only |
|
Note: Standard dual fans Machine performance: suction, sweep and spray combined to effectively suppress dust and thoroughly clean up ground garbage and dust. Application: It can be used to clean factory workshops, parks, streets, roads, docks, residential areas, warehouses, stadiums, schools, airports and other areas. The cleaning efficiency is 10 times that of traditional manual cleaning, and one sweeper can replace 8-12 cleaning workers. |
|||
