Self-Dumping Floor Sweeper

Electric Street Sweeper | Self-Dumping Hopper | Sutoclean

The ST-X4C is a high-performance, fully enclosed ride-on electric street sweeper with a self-dumping system, designed for heavy-duty industrial and municipal outdoor cleaning. It delivers powerful, efficient cleaning for large spaces like factory yards, parking lots, municipal roads, logistics parks, and campuses, combining long battery life, large-capacity dustbin, and multi-functional configuration to replace manual cleaning and significantly improve work efficiency.
Cleaning Path (with side brushes)86.6 in / 7.2 ft2,200 mm / 2.2 m
Hopper (Dustbin) Capacity31.1 cubic feet880 L
Estimated Coverage/Productivity (at working speed)Up to 344,448 sq ft/hUp to 32,000 sq m/h

Share:

OEM/ODM

R&D Team

After-Sales Service Team

Global Delivery

Description

Parameters

Description

Overview

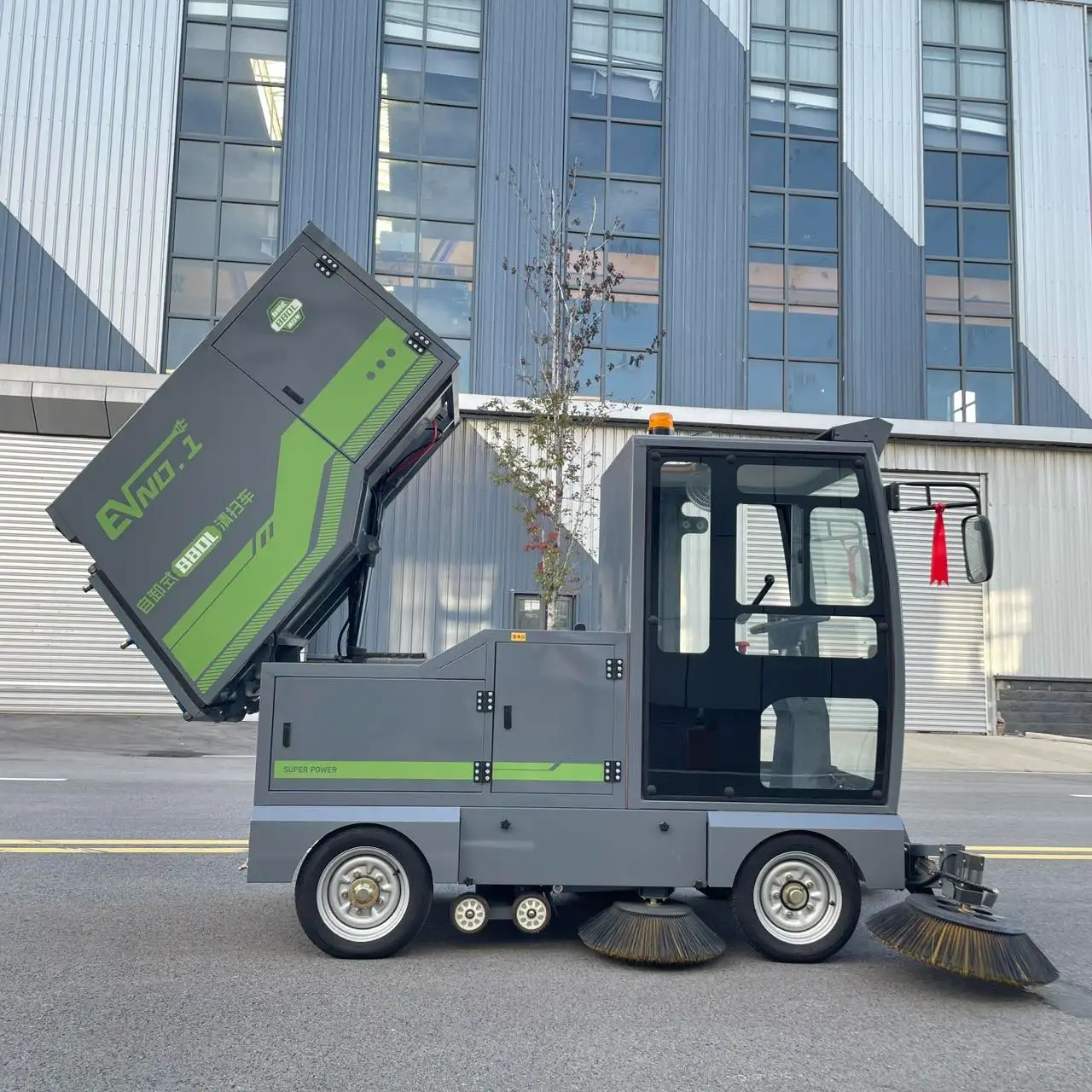

ST-XC Electric Street Sweeper-Side

The ST-4C is a 4-wheel European version 4C self-dumping vacuum street sweeper, designed for heavy-duty industrial and municipal outdoor cleaning. Equipped with a fully enclosed steel cab, 60V 300Ah lithium battery, and 5000W high-power DC brushless fan, this ride-on street sweeper delivers 2200mm ultra-wide cleaning width, 880L large-capacity dustbin, and 2750mm maximum dumping height, realizing one-key automatic garbage unloading, greatly improving cleaning efficiency.

Core advantages

  • High Efficiency Cleaning**: 2200mm sweeping width, 12km/h working speed, 3-5h continuous working time, easily handle large-area cleaning of roads, warehouses, parking lots, factories.
  • Self-dumping System: 880L dustbin with 2750mm maximum dumping height, one-key automatic unloading, no manual operation, reduce labor intensity.
  • European Standard Design**: Fully enclosed steel cab, glass door, reversing image, LED full set of lights, comfortable driving, safe operation, compliant with European market requirements.
  • Long Battery Life: 60V 300Ah lithium battery, 6-8h charging time, ≥3h full load working time, meet all-day cleaning demand.
  • Multi-function Configuration: Equipped with 160L water tank for dust suppression, optional 1500W high pressure washer system, handheld high pressure water gun, realize sweeping + washing + dust suppression integrated.
  • Durable & Safe: Rear wheel hydraulic drum brake system, handbrake parking, 25° maximum climbing, 1050KG body weight, stable operation, suitable for various complex road conditions.

About SUTO

SUTO Commercial Cleaning Equipment(Anhui Shutong Intelligent Technology Co., Ltd)headquartered in Hefei, Anhui Province, is a comprehensive cleaning equipment company integrating R&D, production, sales, and service. With the mission of “manufacturing the best floor scrubbers,” the company is deeply committed to intelligent and electrified technologies, driving technological advancement in the cleaning industry. The company has established production lines for five core components: the integrated die-cast chassis, roto-molded water tank, battery, motor, and electronic control, with an annual production capacity of 200,000 units. It also has an efficient assembly line for complete units with an annual capacity of 20,000 units. The company offers four product lines: walk-behind, ride-on, and integrated scrubbers and sweepers, as well as road sweepers, serving nearly 30,000 customers.

As the cleaning industry evolves, the company not only provides products and equipment, but also offers efficient and cost-effective customized solutions for diverse cleaning needs.

logo

Parameters
Category Item Specification
Basic Info Product Model ST-X4C
  Rated Passenger 1 Person
Dimension & Weight Overall Dimension (L×W×H) 3500*2200*2100 mm
  Wheelbase 1620 mm
  Wheel Track 930 mm
  Ground Clearance 100 mm
  Net Weight 1050 KG
Vehicle Performance Max Driving Speed 25 km/h
  Working Speed 12 km/h
  Minimum Turning Radius 4.5 m
  Maximum Climbing Gradient ≤25°
  Working Time 3-5 hours (Full load working time ≥3 hours)
Cleaning System Cleaning Width 2200 mm
  Front Brush Diameter 700 mm
  Middle Brush Diameter 600 mm
  Suction Cup Width 800 mm
  Water Tank Capacity 160 L
  Dustbin Capacity 880 L
  Maximum Dumping Height 2750 mm
Electric Control System Driving Controller 60V 3000W DC Controller
  Battery 60V 300Ah Lithium Battery
  Driving Motor 60V 3000W DC Motor
  Fan DC Brushless Fan 60V 5000W
  Charger Portable Intelligent Charger
  Charging Time 6-8 hours
Body Configuration Cab Enclosed frame steel structure cab, glass door, electronic display instrument, reversing image, USB charging port, electronic cigarette lighter, ashtray, cup holder
  Seat Leather soft seat, leather backrest
  Rearview Mirror Large view no dead angle rearview mirror
  Light & Signal Warning light + LED roof light + LED side turn signal + LED arrow headlight + rear tail light + reverse prompt
High Pressure Cleaning System (Optional) High Pressure Pump 1500W
  Handheld High Pressure Water Gun 1 set (0°, 15°, 25° nozzles included)
  High Pressure Hose Reel 10 meters
  Underbody Flushing 1000mm 7-hole sprinkler
Chassis Tire 135/70R12
  Steering Mode Steering wheel mechanical type
  Braking System Rear wheel hydraulic drum brake system, handbrake parking
Body Color Default Color Dark gray (LOGO customizable)
Product Features 1. Streamlined body with tempered glass
  2. Sprinkler pipe at the rear of the body for water spray dust suppression
  3. Equipped with vacuum tube, wear-resistant and long service life
  4. High temperature metal baking paint, electrophoretic coating and other anti-rust measures
