1. Overview: Powering the Future of Urban Sanitation
The ST-X5C Heavy Duty Sweeper Machine is not just a vacuum Sweeper; it is a mobile sanitation station designed for large-scale industrial parks, municipal streets, and massive logistics hubs. Engineering excellence meets practical utility in this model, which combines a massive 1200L hopper with an industry-leading lithium power system. If you are looking for a machine that can handle heavy debris, stubborn stains, and long work shifts without breaking a sweat, the ST-X5C is your definitive choice.
2. Core Sell Points: Why the ST-X5C Outperforms the Competition
Elite Battery Tech: 60V 300Ah Lithium Iron Phosphate
At the heart of the ST-X5C is a high-density 60V 300Ah Lithium (LiFePO4) battery.
- Extended Run Time: Provides 3-5 hours of continuous sweeping, covering over 20,000 square meters on a single charge.
- Maintenance-Free: Unlike lead-acid batteries, lithium batteries require no water topping and offer a significantly longer lifespan (up to 2000+ charge cycles).
- Rapid Charging: Get back to work faster with our 6-8 hour smart charging system.
B. Maximum Efficiency: 1200L Capacity with 2.5m Self-Dumping Remote Dumping System
The ST-X5C is designed to last longer on the job.
- Huge 1200L Hopper: Minimizes the need for frequent disposal trips, allowing operators to complete large sectors in one go.

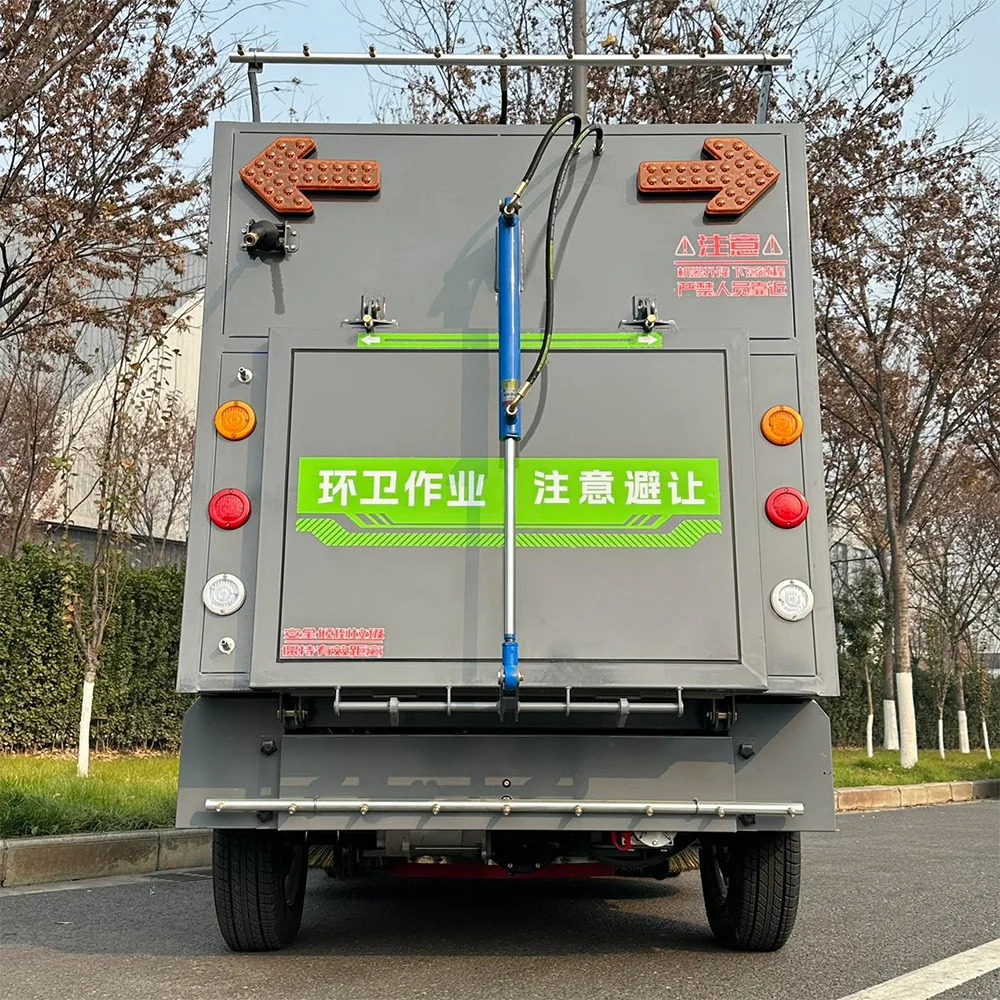

- Hydraulic High-Lift Dump: The waste container can be raised to 2500mm, allowing the operator to dump debris directly into standard garbage trucks or high-side skips. This “truck-to-truck” workflow drastically reduces labor intensity and secondary pollution.
C. Team Productivity: The Dual-Seat Professional Cabin
We understand that complex cleaning tasks often require more than one set of hands.

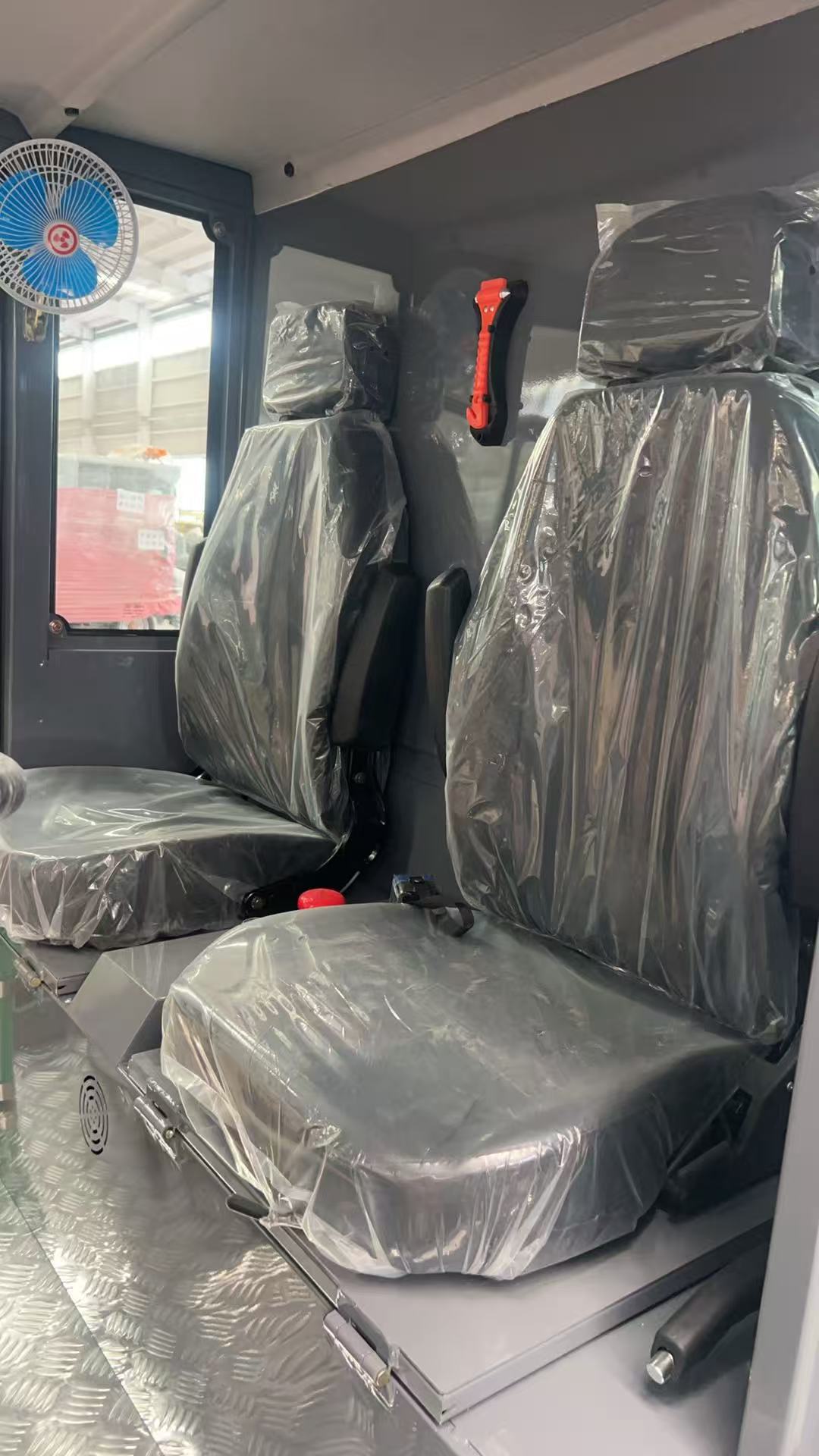

- Two-Operator Design: The spacious, enclosed cabin features dual leather seats, allowing a driver and a technician to work together. One handles the precision driving while the other manages the high-pressure washing or peripheral spotting.
- All-Weather Comfort: The steel-frame cabin is equipped with tempered glass doors, an electronic control dashboard, a rearview camera for safety, and an optional HVAC system for extreme climates.
D. Deep Cleaning: Integrated 1500W High-Pressure Washer
Traditional sweepers often struggle with “stuck-on” grime. The ST-X5C Heavy Duty Sweeper Machine solves this with an integrated 1500W High-Pressure Water System.
- 10-Meter Hose Reel: Easily reach corners, stairs, or trash cans.
- Adjustable Nozzles: Use the 0°, 15°, or 25° tips to blast away oil stains from pavement or sanitize public areas efficiently.
- 600L Water Tank: A dedicated large-capacity tank ensures you have enough water for both dust suppression and high-pressure washing tasks.
3. Technical Specifications
| Technical Parameter | Details |
| Model Number | ST-X5C (Heavy Duty Series) |
| Cleaning Width | 2500mm (Double Side Brushes) |
| Main Motor Power | 60V 5000W DC Brushless |
| Battery Type | 60V 300Ah Lithium Iron Phosphate |
| Travel / Work Speed | 16 km/h / 10 km/h |
| Waste Hopper Capacity | 1200 Liters |
| Water Tank Capacity | 600 Liters |
| Max Dumping Height | 2500mm |
| Climbing Capacity | ≤ 25° Grade |
| Tire Size | 185R14LT Heavy Duty Vacuum Tires |
| Dimensions | 4450mm x 2500mm x 2400mm |
4. Built for Durability: Engineering Highlights
The ST-X5C is built to last in harsh environments.
- Anti-Corrosion Coating: The body features high-temperature metallic paint applied via electrophoresis and spray processes to prevent rust.
- Reinforced Chassis: Specifically designed to handle the weight of a full 1200L load while navigating uneven industrial terrain.
- Safety First: Includes a full LED lighting package (warning lights, top lights, side spotlights, and arrow signals) and a reverse voice prompt system to protect pedestrians.
5. Frequently Asked Questions (FAQ)
Q: Can the battery capacity be customized?
A: Yes, the ST-X5C Heavy Duty Sweeper Machine supports modular battery upgrades. You can choose to add double or even quadruple battery packs for 24-hour operations.
Q: Is the cabin air-conditioned?
A: The standard model comes with an electric fan and excellent ventilation. However, we offer an optional cooling and heating air conditioning unit for extreme weather conditions.
Q: What kind of terrain can the ST-X5C Heavy Duty Sweeper Machine handle?
A: With its 185R14LT tires and high-torque motor, it easily handles slopes up to 25°, making it perfect for underground parking garages and hilly campuses.
